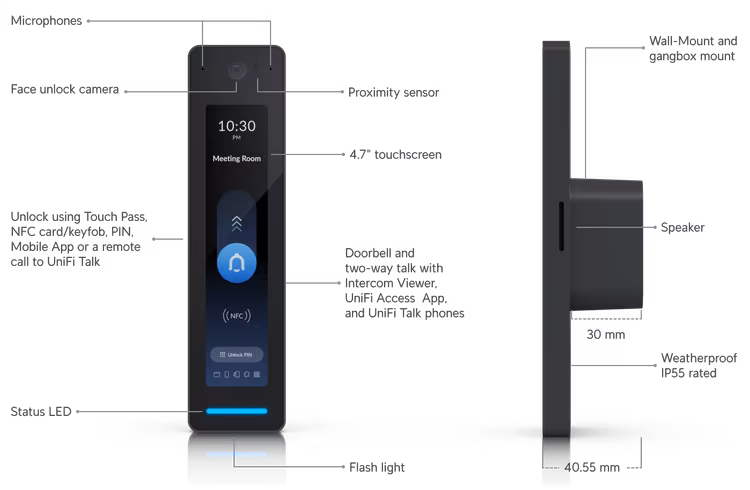

Overview

• Dimensions: 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6 in)

• Integrated Camera: ✓

• NFC Card & Keyfob Access: ✓

• PIN Access: ✓

• Mobile Unlock: ✓

• Two-Way Intercom & Doorbell Access: ✓

• NDAA Compliant: ✓

• UL 294 Level: – Destructive Attack: Level I – Line Security: Level I – Endurance: Level I – Standby Power: Level I

• Weatherproofing: IP55

Mechanical

• Weight: 136 g (4.8 oz)

• Enclosure Material: Polycarbonate, glass

• Mount Material: Aluminum alloy

• Mounting: – Wall, gang-box mount (Included) – Angle mount, junction box (Optional)

Hardware

• Indoor/Outdoor Use: Yes

• Ambient Operating Temperature: – Device: -30 to 45°C (-22 to 113°F) – Display: -10 to 45°C (14 to 113°F)

• Ambient Operating Humidity: 5% to 90% noncondensing

• Networking Interface: (1) GbE RJ45 port

• Connectivity: BLE 4.2, NFC

• Power Method: PoE

• Power Supply Standards: – UL 294 Power-limited Class 2 PSU – UL 60950-1 / 62368-1 LPS / PS2 PSU

• Max. Power Consumption: 6W

• Supported Voltage Range: 48V DC

• ESD/EMP Protection: – Air: ±15kV – Contact: ±8kV

• Sensors: Proximity sensor

Display

• Size: 120 mm (4.7") diagonal

• Touch Screen Technology: Capacitive touch

• Luminance: 480 nits (Typical)

• Orientation: Portrait

• Resolution: 1280 × 286 px

Audio & Controls

• Microphone: ✓

• Speaker: ✓

• Buttons: (1) Factory-reset

• LEDs: R/G/B/W/Amber

NFC

• Frequency: 13.56 MHz

• Read Range: < 30 mm (1.18")

• Supported Technologies: – ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) – MIFARE Classic / MIFARE DESFIRE – Sony FeliCa™ (ID only) – NFC Forum tags: T1T, T2T, T3T, T4T, T5T

Cabling & Compliance Notes

• PoE Cabling Requirements: – Minimum: Cat 5e – Patch cords: 26 AWG (0.13 mm²) – Horizontal/riser cable: 24 AWG (0.21 mm²)

• UL 294 Statement: – Compliance with IEEE 802.3 not verified – Equipment designed to comply with NEC Article 725.121

• CAN/ULC-60839-11-1 Grade Assignment: I

• Certifications: CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1

• Document Number & Revision: UA-G2-Pro / UA-G2-Pro-Black, V02

Software

• Management Application: UniFi Access

• Software Version Check: https://unifi.ui.com
