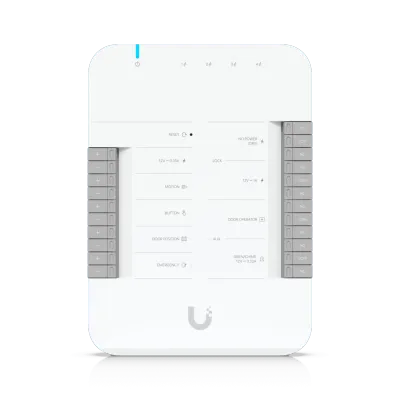

Overview

• Dimensions: 174.9 × 126 × 32.9 mm (6.9 × 5 × 1.3 in)

• UniFi Application Suite Support: Access

• Supported Doors: 1

• Input Terminals: – (2) Door exit request – (1) Door position – (1) Emergency

• Power Method: – PoE++ – UL 294 Power-limited Class 2 PSU – UL 60950-1/62368-1 LPS/PS2 PSU

• NDAA Compliant: ✓

• UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I

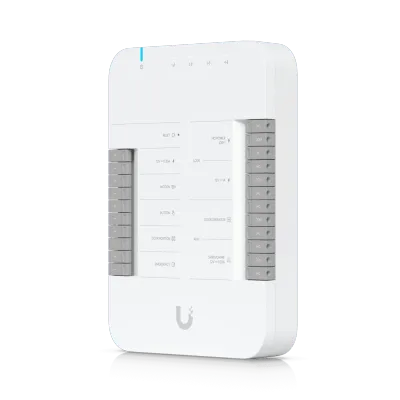

Mechanical

• Weight: 363 g (12.8 oz)

• Enclosure Material: Polycarbonate

• Mount Material: Polycarbonate

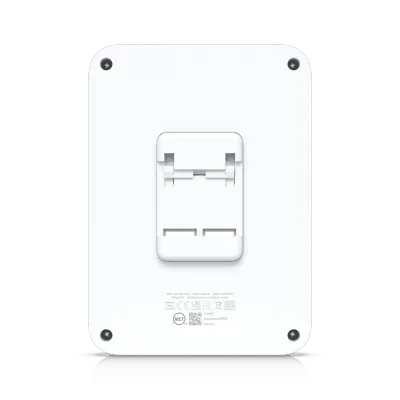

• Mounting: DIN-rail (Included)

Hardware

• Digital Inputs: Request to exit, request to enter, remote release, door position sensor

• Dry Output Relay: – Lock: 30V DC, 1A – Aux: 30V DC, 1A

• Powered Output Relay: – Lock: 12V DC, 1A – Aux: 12V DC, 0.33A – 12V DC, 0.33A

• Indoor/Outdoor Use: Indoor only

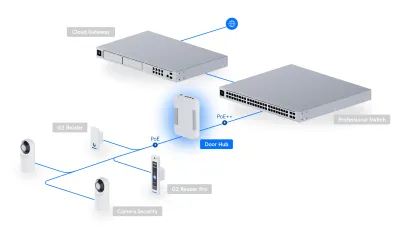

• Networking Interface: (5) 10/100/1000 Base-T

• PoE Interface: – Input: (1) PoE++, 50V DC, 1A – Outputs: (4) PoE, 50V DC, 15.4W per port (Max. 28W aggregated)

• Max. Power Consumption: – 30W (Without PoE output) – 50W (With PoE output)

• LEDs: White/Blue

• Buttons: (1) Factory-reset

Recommended Max. Cable Lengths

For various lock types (based on AWG)

• UA-Lock-Electric (400mA): – 24 AWG: 25 m (82 ft) – 22 AWG: 42 m (138 ft) – 20 AWG: 66 m (217 ft) – 18 AWG (UACC-DoorLockRelay): 100 m (328 ft)

• UA-Lock-Magnetic-540kg (500mA): – 24 AWG: 20 m (66 ft) – 22 AWG: 32 m (105 ft) – 20 AWG: 51 m (167 ft) – 18 AWG: 80 m (262 ft)

• UA-Lock-Magnetic-270kg (800mA): – 24 AWG: 12 m (39 ft) – 22 AWG: 20 m (66 ft) – 20 AWG: 30 m (98 ft) – 18 AWG: 46 m (151 ft)

• Other locks (1A): – 24 AWG: 9 m (30 ft) – 22 AWG: 15 m (49 ft) – 20 AWG: 24 m (79 ft) – 18 AWG: 36 m (118 ft)

PoE Cabling Requirements

• Minimum: Cat 5e

• Patch cords: ≥ 26 AWG (0.13 mm²)

• Horizontal/riser cable: ≥ 24 AWG (0.21 mm²)

Certifications & Compliance

• UL 294 Statement: – IEEE 802.3 compliance not verified – Designed to meet NEC Article 725.121 for Class 2 & 3 circuits

• CAN/ULC-60839-11-1 Grade: Grade 1

• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

• Document Number: UA-Hub-Door002, V01

Software

• Management Application: UniFi Access

• Software Version Check: unifi.ui.com
