Mechanical

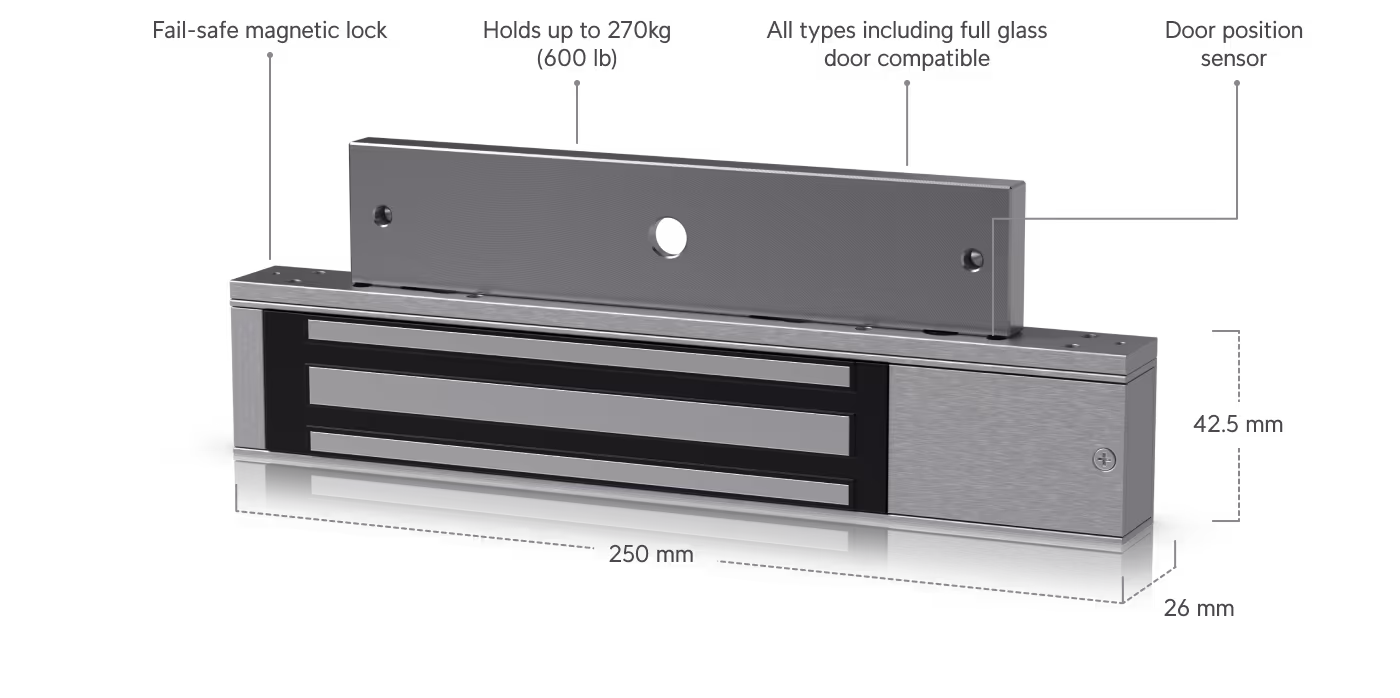

• Dimensions (UA-Lock-Magnetic-270kg): – Lock body: 250 × 42.5 × 26 mm (9.8 × 1.7 × 1 in) – Install plate: 250 × 25 × 5 mm (9.8 × 1 × 0.2 in) – Armature: 185.5 × 38.5 × 11 mm (7.3 × 1.5 × 0.4 in)

• Dimensions (UA-Lock-Magnetic-540kg): – Lock body: 266 × 67.5 × 40 mm (10.5 × 2.7 × 1.6 in) – Install plate: 266 × 40 × 6 mm (10.5 × 1.6 × 0.2 in) – Armature: 185 × 61 × 16 mm (7.3 × 2.4 × 0.6 in)

• Weight (UA-Lock-Magnetic-270kg): – Lock body: 1 kg (2.2 lb) – Install plate: 70 g (0.15 lb) – Armature: 600 g (1.3 lb)

• Weight (UA-Lock-Magnetic-540kg): – Lock body: 2.9 kg (6.4 lb) – Install plate: 145 g (0.3 lb) – Armature: 1.4 kg (3.1 lb)

• Enclosure Material: Device/brackets: aluminum; Armature: steel

• Type: Fail-safe lock, single door

Hardware

• Holding Force: – 270kg model: 270 kg (600 lb) – 540kg model: 540 kg (1,200 lb)

• Wiring Connection: – Lock 12V/NC → UA-Hub Power Lock Relay NC – Lock 12V/COM → UA-Hub Powered Lock Relay COM – DPS/+ → UA-Hub DPS+ – DPS/– → UA-Hub DPS–

• Current Power: – 270kg: 800mA ±10% – 540kg: 500mA ±10%

• Supported Voltage Range: 12V DC

• Compatibility: – 270kg: wooden, metal, or glass doors – 540kg: wood and metal doors

• LED Indicators: – Green: unlocked – Red: locked

Mounting Accessories

• 270kg Model: – L bracket: for outward opening doors (< 42 mm thick) – Z bracket: used with L bracket for inward opening doors – U bracket: for glass doors ≤ 17 mm thick, with gap ≤ 5 mm

• 540kg Model: – L bracket: for outward opening doors (< 42 mm thick) – Z bracket: used with L bracket for inward opening doors

Environmental

• Operating Temperature: -10 to 50°C (14 to 122°F)

• Operating Humidity: 5% to 90% noncondensing

Certifications & Compliance

• NDAA Compliant: ✓

• Certifications: FCC, IC, CE
