Overview

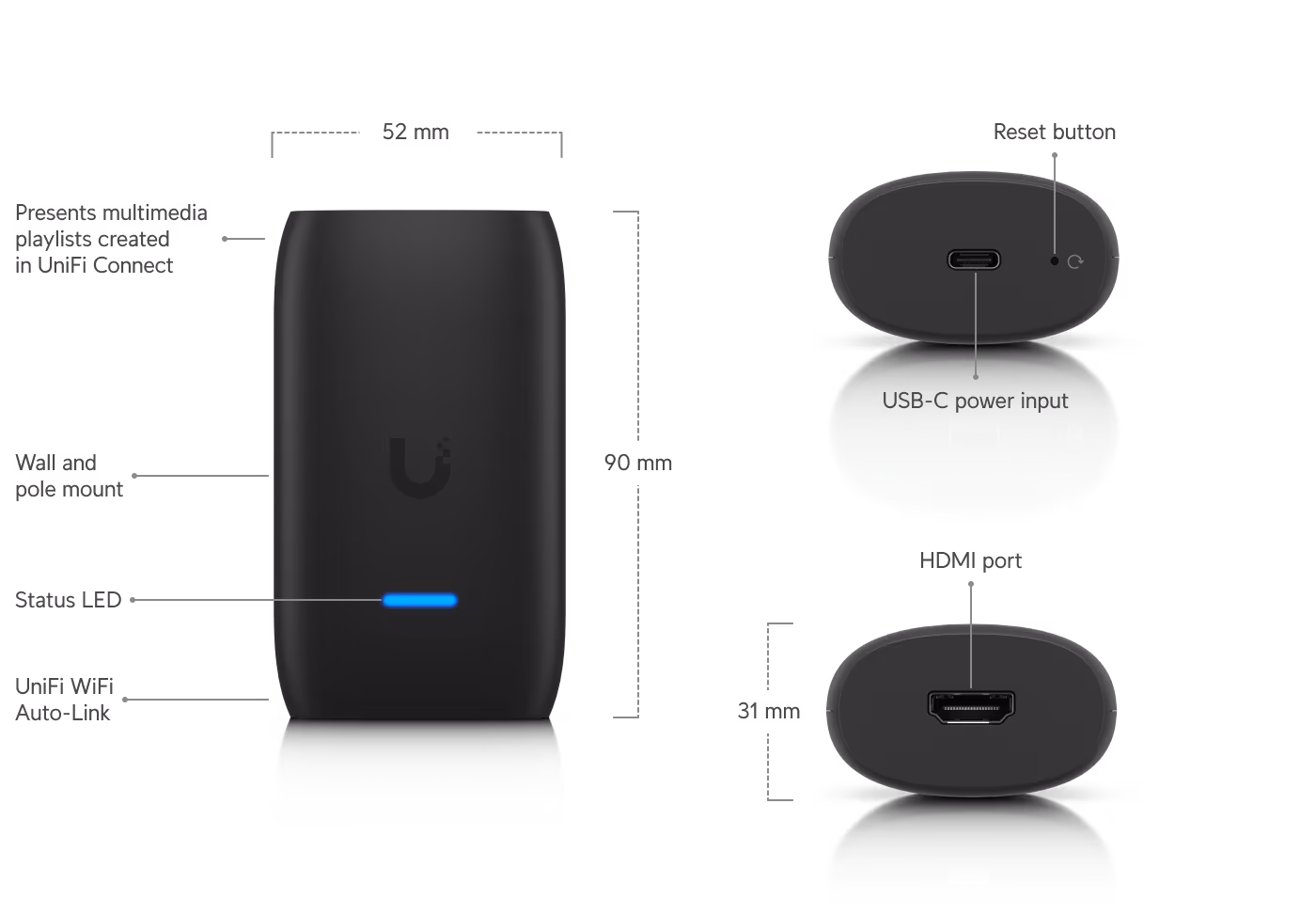

• Dimensions: – Without mount: 90 × 52 × 31 mm (3.5 × 2.1 × 1.2 in) – With mount: 92.1 × 56.3 × 40.8 mm (3.6 × 2.1 × 1.4 in)

• Display Output: (1) HDMI port

• Video Content Support: Up to Full HD / 60 FPS

• UniFi Application Suite Support: Connect ✓

Mechanical

• Weight: – Without mount: 160 g (5.6 oz) – With mount: 180 g (6.3 oz)

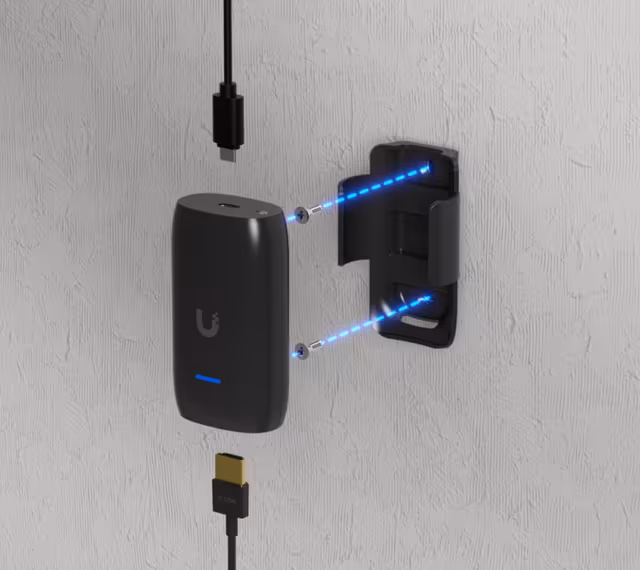

• Pole Mount Diameter: 1–2" (25–50 mm)

Hardware

• Processor: Quad-Core Arm® Cortex®-A55, 1.9 GHz

• Memory: – Storage: 16 GB – RAM: 2 GB

• Power Method: (1) USB Type-C 5V DC, 1A

• Max. Power Consumption: 5W

• Connectivity: – WiFi 2.4G, BW 20/40 MHz – WiFi 5G, BW 20/40/80 MHz

• WiFi Standards: 802.11 a/b/g/n/ac/ax

• Buttons: (1) Factory-reset

• LED Indicator: White / Blue

Environmental

• Operating Temperature: 0 to 40°C (32 to 104°F)

• Operating Humidity: 20% to 90% noncondensing

Certifications & Compliance

• Certifications: CE, FCC, IC, Wi-Fi CERTIFIED

• NDAA Compliant: ✓

Software

• Management Applications: – UniFi Connect Web (Version 3.17.0 and later) – UniFi Connect iOS™ / Android™ (Version 2.26.0 and later)
